Patented Solvent Purifier
Solvent Purification Assembly
Overview
The Vacuum Atmospheres Patented Solvent Purifier System removes moisture from organic solvents more safely than thermal distillation. The system repeatedly circulates solvent through a factory conditioned purification cartridge and a stainless steel reservoir.
Key Advantages
- Designed for 4-liter solvent bottles, minimizing volatile solvent storage
- Reduces waste from impurity accumulation (including peroxides)
- No heat or reactive drying agents required
- Enables precise dispensing of anhydrous solvents on demand
- In-box dispensing options available
Key Benefits
- Removes H2O in ACS grade THF to less than 1 ppm
- Closed-loop circulation provides anhydrous solvent in 6 hours
- Operates safely at 1 psi pressure
- Dries up to 200 liters with one cartridge (ACS grade solvent)
- User-replaceable drying media
- Eliminates need for large external solvent kegs and fireproof storage cabinets
- Modular design fits standard exhaust hoods
- Expandable configuration
- Simple NW40-KF feedthrough filling on each module
The System

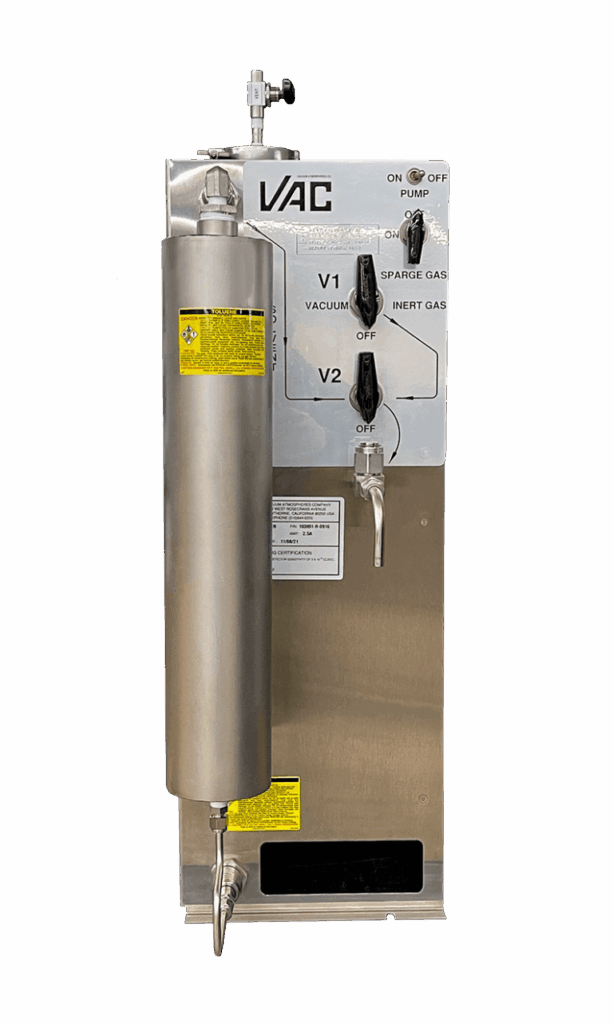

Single Purifier Unit

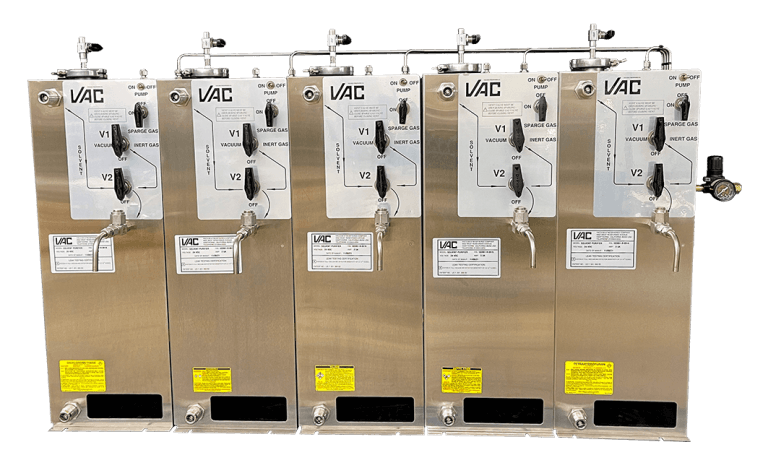

Modular / Expandable Train

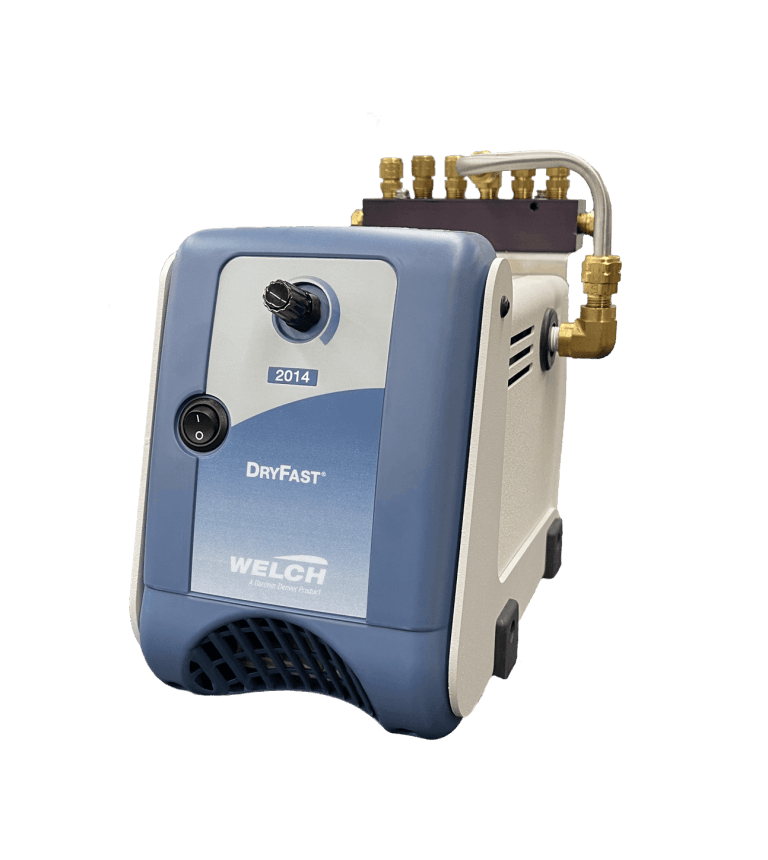

Vacuum Pump Assembly
Accessories
Performance Data

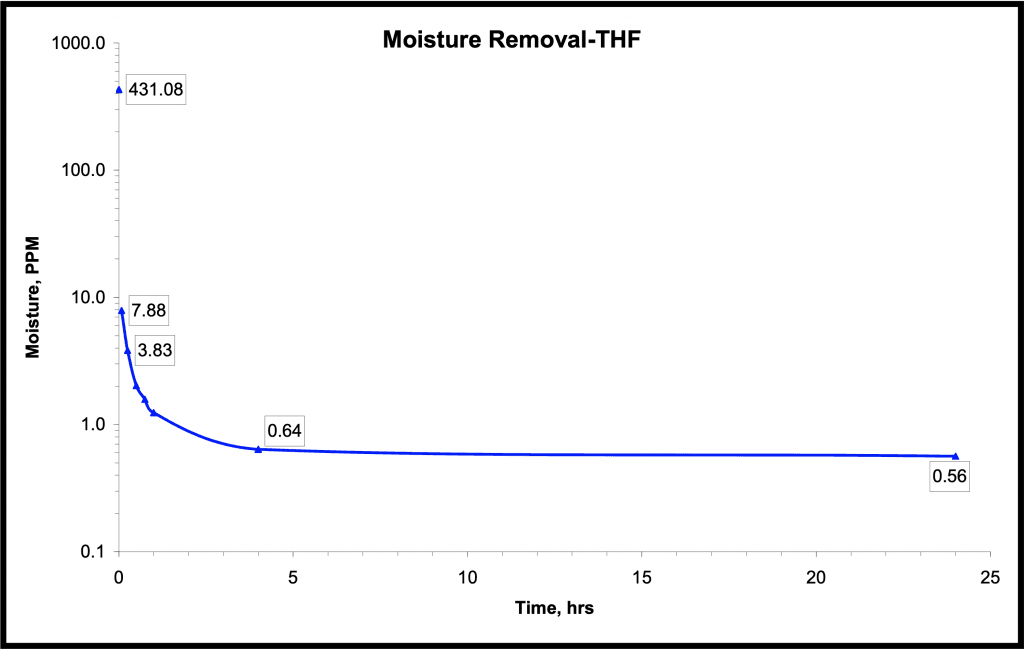

The solvent purifier removes moisture to less than 1 ppm (Karl Fischer titration measurements using ACS grade THF without inhibitors).
Purification Time: 6 hours conditioning time; capable of producing over 8 liters of anhydrous solvent daily.

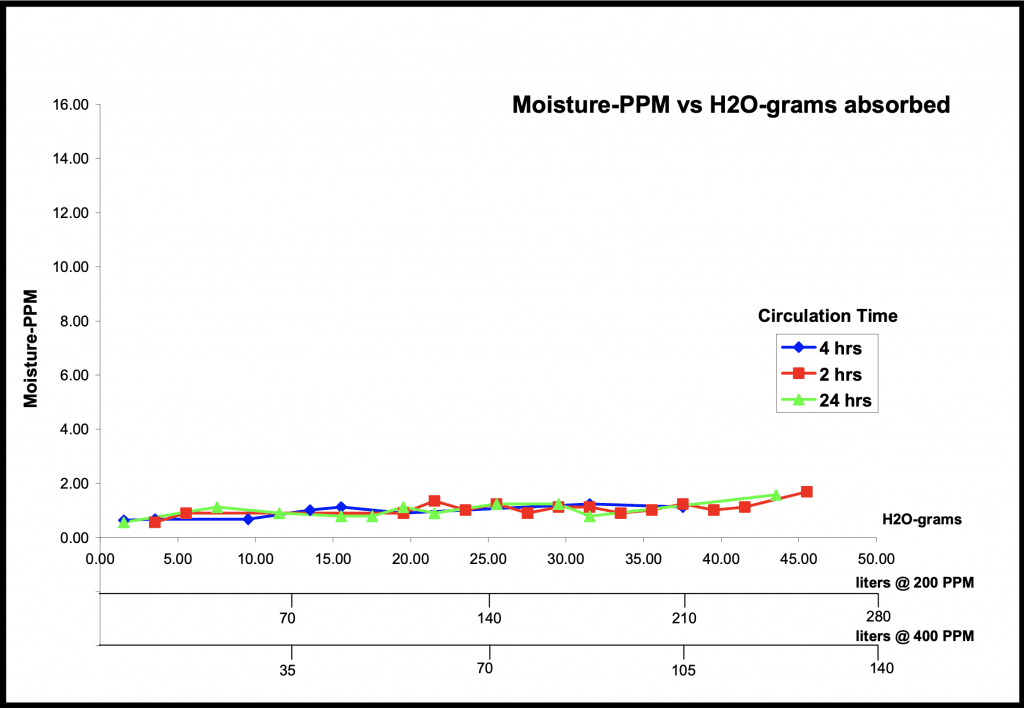

Cartridge Life: Approximately 48 grams of H2O removal (~250+ liters ACS grade solvent at 200 ppm).
Technical Specifications
Dimensions
- Assembly height: 27.3″
- Assembly width: 9.8″
- Assembly depth: 15″
Capacity
- Fill capacity: 4 liters
- Reservoir volume: over 5 liters
- Purification cartridge capacity: ~200 liters (ACS grade)
- Sampling range: 1 mL to 1 liter
Features
- Stainless steel construction (reservoir, valves, filters)
- Solvent-resistant circulation pump with universal power adapter
- 24/40 universal inlet adapter included
- Oxygen removal via inert gas sparging (nitrogen or argon)
Required Utilities
- Inert gas: nitrogen or argon, 99.995% minimum purity
- Electrical: single phase, 110 or 220 VAC, 60/50 Hz
- Vacuum pump: minimum 0.64 cfm (18 L/min), 26 inches Hg minimum
Pump Assembly
- Solvent-resistant PTFE vacuum pump
- Distribution manifold for up to 7 purifiers
- 50 feet PTFE tubing and fittings included
- One assembly required per system
Gas Regulator Kit
- 0-10 psig regulator with distribution manifold (up to 7 purifiers)
- Mounted on stainless steel panel
- One kit required per system

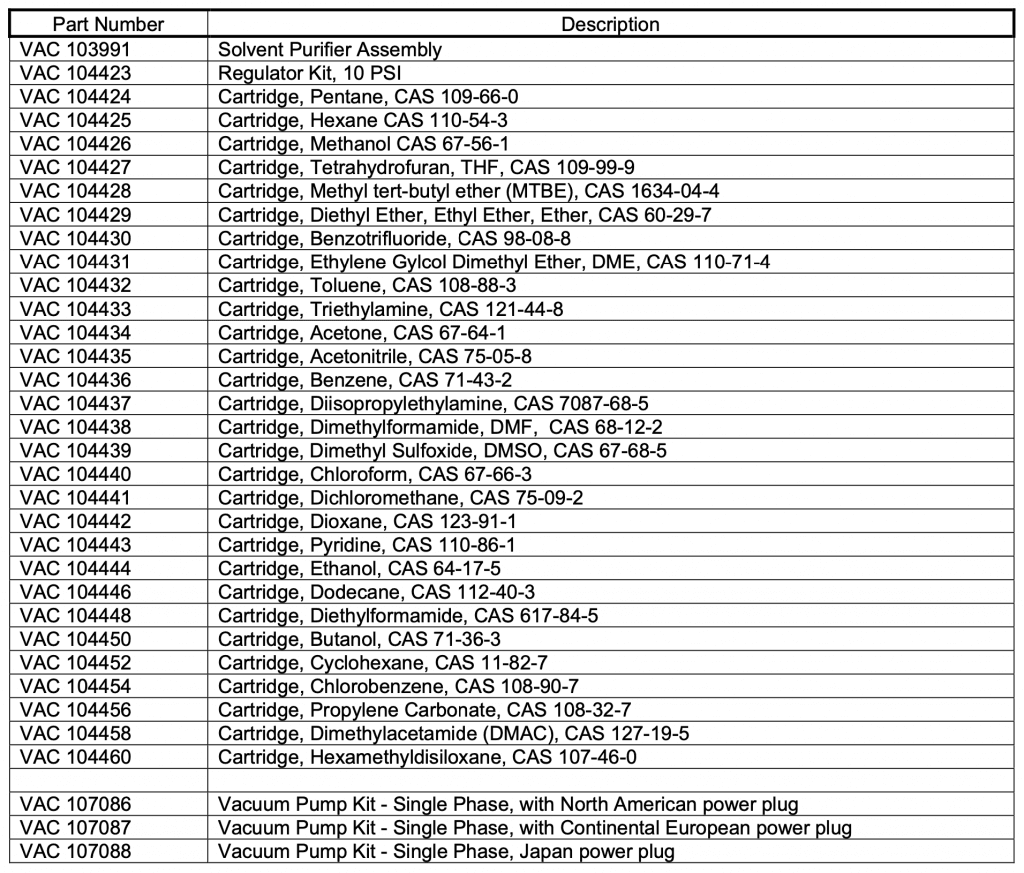

Options

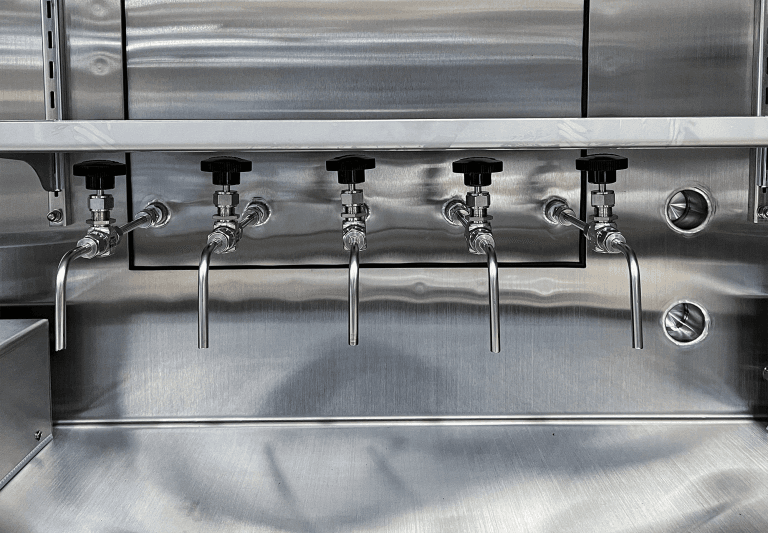

In-Glovebox Solvent Dispenser
Delivers anhydrous solvent directly into the glovebox, eliminating moisture exposure.
Solvent Keg Adapter
Enables refilling from industry-standard large-volume reservoirs.
Maintenance
Purification Media Replacement: Pre-activated replacement media supplied by VAC when the cartridge reaches saturation; no on-site activation required.
